SMD2121 P3.91 Transparent LED Screen LED Mesh Curtain Super Clear Vision

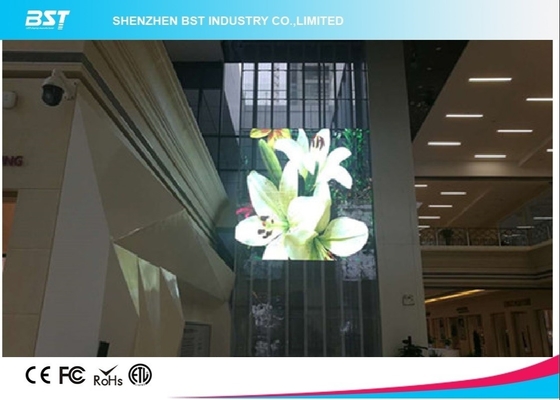

Transparent led screen is to create special stage lighting effect. It is ultra-thin and super-light, transparent, low power cost,can be mounted on ceiling or install as a bankdrop of the stage to make an amazing LED stage. It shows some video as well as stage lighting
Quick Detail:
1,easy to install.
2,Slim:only 18mm screen thickness.
3,High transparent image: transparent rate 60%.
4,Cost-saving:saving above 50%energy than traditional LED screen.
Features:
Highly transparent, better color performance.
Simple and easy to operate, install and transport.
Lightweight, quick-connect hanging brackets guarantee fast build-up and tear-down.
Silent system by fan-less design.
Cost-effective, create visual effects at special events on a limited budget.
Perfect for entertainment venues, events, exhibitions and architectures with long viewing distances.
It allows audio, wind, light and smoke to pass through, presenting dramatic effect. With a transparency factor of 60%.
Our service:
1. Any inquiry or complaint will be replied within 24hrs.
2. Providing competitive products and sales consultation.
3. Any your customized product or idea we can help you to design and put into product.
4. Two-year quality guarantee, only needs to anew purchase the raw material when over the warranty period.
5. Protection of your sales area, ideas of design and all your private information.
6.Years of production experience we can very good to control the quality of the product, OEM and ODM accepted.
Applications:
indoor applications, at music festivals, theatre, concert, large tradeshow booths, etc.
Specifications:
| Pitch |
P3.91-7.81 |
| Pixel Resolution |
32768pixels |
| Module Resolution |
128*32pixels |
| Module size |
500mmX250mm |
| LED type |
SMD2121 |
| Cbinet Size |
500mm*500mm |
| Cabinet Materials |
Acrylic Glass,Aluminium Alloy |
| Weight |
7kg/ m² |
| Transparent Rate |
60% |
| Brightness |
≥1200nits |
| Frame Rate |
≥60Hz |
| Refresh Rate |
≥1920Hz |
| Average Power Consumption |
120w/m² |
| Max power consumption |
400w/m² |
| Grey Scale |
14-16bits |
| Working Voltage |
DC5.0v |
| Vewing Angle |
H140° and V140° |
| Working Environment |
Temperature-10ºC-40ºC,Humidity10-90% |
| MTBF |
≥100000 Hours |
